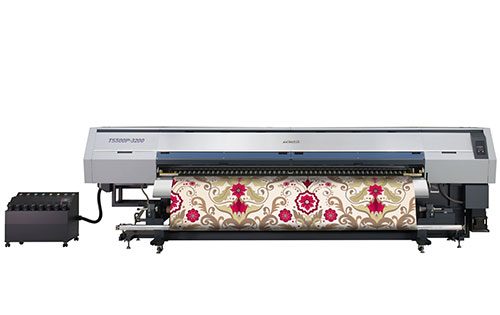

A high quality, super-wide sublimation transfer inkjet printer …
Mimaki’s latest grand-format transfer paper printer delivers the ultimate in high productivity for the exhibition, retail and home furnishing markets with its combination of speed and high quality output. The machine’s industrial build quality and innovative technical features ensure new levels of performance and reliability.
High print speeds
Specially designed for flimsy media
Continuous unattended printing
Maximum print speed of 180m2/h (360 x 360dpi, 2 pass, Bi)
New 12 x printhead configuration in 3-row staggered array
New Sb310 high performance, low-cost sublimation transfer ink
External Bulk Ink System for long-run continuous printing with 3 litre containers
Mimaki Advanced Pass System (MAPS)
Nozzle Check Unit (NCU) ensures reliable continuous print operation
Cockling reduction transfer mechanism for higher quality print
Create…
Home furnishing & upholstery fabrics including Bedding and Curtains, Soft signage, Textile retail PoS, Light boxes, Exhibition and Portable display, Graphics, Wall art and much more…
Maximum print speed of 180m2/h for high productivity
The TS500P-3200 optimizes the printing speed and quality to produce the desired print results. For this purpose, it provides a wide range of printing modes, from the draft printing mode (which operates at the maximum speed of 180m2/h) to high-quality printing mode.
Cockling-reduction media transportation mechanism ensures stable printing
TS500P-3200 incorporates innovative features to reduce the effects of ‘cockling’ (the wrinkling of the media surface due to high levels of ink absorption, particularly when using low-cost or thin transfer papers).
Two Post Heaters with independent temperature control gradually heat the media after printing to reduce ‘cockling’
Vacuum media hold-down system smooths out cockling effects with vacuum suction beneath the platen
Media
Auto Media Feeder (AMF) maintains stable media feeding and take-up by automatically applying the correct tension
12 x Printhead configuration in staggered array
12 print heads
1 head: 800 nozzles (200 nozzles x 4 row)
For each colour, 3 print heads are staggered in-line
Mimaki Advanced Pass System (MAPS)
To prevent banding, swath boundaries are overprinted and boundaries prone to banding are printed with fewer ink droplets.
Continious uninterrupted printing features
Continuous operation support minimizes the downtime
In the event of a nozzle malfunction not being repairable by the use of the maintenance function, printing can continue by the use of another nozzle, without any loss of productivity or a reduction in image quality.
Built-in large (3 L) ink containers for long-time continuous printing
Continuous operation support pack minimizes the downtime. Large (3 L) ink containers are installed in an external ink supply unit. Ink can be filled into the container during long-time continuous printing. A degassing module is installed on the printhead carriage to allow the use of affordable undegassed inks.
Sophisticated RIP software maximizes the performance of TS500P-3200
