COMPACT, HIGH-SPEED UV-LED PRINTER
Boost productivity without compromising quality
Compact UV-LED flatbed printer with top-class speed
The JFX200-1213 EX is a high-performance flatbed UV printer designed for businesses needing compact size without compromising productivity. With a table dimension of 1,300mm x 1,270mm, approximately 30% smaller than the JFX200-2513 EX, this printer is ideal for various media sizes, covering all international standard A sizes. It offers top-class printing speeds of up to 25m2/h in the mid-size flatbed range, significantly outpacing its competitors, including being more than twice as fast as the UJF-6042 MKII e.
The printer’s enhanced speed and productivity allows for faster turnaround times, making it an excellent choice for businesses looking to increase output. The JFX200-1213 EX also supports 2.5D embossed printing, creating textured, raised effects on prints, adding depth and tactile appeal to designs. With easy media loading and bi-directional Braille printing capabilities, the JFX200-1213 EX enhances versatility and ease of use, providing a reliable and efficient printing solution.
The printer’s enhanced speed and productivity allows for faster turnaround times, making it an excellent choice for businesses looking to increase output. The JFX200-1213 EX also supports 2.5D embossed printing, creating textured, raised effects on prints, adding depth and tactile appeal to designs. With easy media loading and bi-directional Braille printing capabilities, the JFX200-1213 EX enhances versatility and ease of use, providing a reliable and efficient printing solution.
Unique features
- High-Speed Printing
Up to 25m²/h, more than twice as fast as the UJF-6042 MKII eDelivers outstanding performance with printing speeds up to 25m²/h, making it significantly faster than competitors, including over twice the speed of the UJF-6042 MKII e.
- Compact Size1,300mm x 1,270mm table, 30% smaller than the JFX200-2513 EXDesigned with a 1,300mm x 1,270mm table, the JFX200-1213 EX is approximately 30% smaller than the JFX200-2513 EX, providing a space-efficient solution without sacrificing functionality.
- 2.5D Emboss PrintingCreates textured, raised effects on printsThe JFX200-1213EX features 2.5D emboss printing, which adds textured, raised effects to prints. This technology enhances designs by creating depth and a tactile feel, making your prints stand out with a unique, three-dimensional appearance. Ideal for applications requiring both visual and physical impact, it elevates the overall aesthetic and user experience.
- Versatile Media HandlingSupports all international A sizes and bi-directional Braille printingCapable of handling all international A sizes and featuring bi-directional Braille printing, this printer provides exceptional versatility and user-friendliness for various media types and applications.
Designed to produce a wide range
of materials and applications
Produce high-quality signage, boards and displays for indoor and outdoor use.
Create custom packaging for products, including boxes, labels and sleeves.
Print directly onto three-dimensional objects such as promotional items, awards and industrial parts.
Ideal for printing on various materials used in industrial settings, including plastics, glass and metal.
Personalise awards and trophies with custom graphics and text.
Print ADA-compliant braille for accessibility and inclusivity.
Versatility in inks
thanks to LED-UV ink technology
With a variety of LED-UV inks available for the JFX200-1213 EX, the range of applications seems endless. Choose between hard inks for rigid materials, flexible inks for a variety of media, or stretchable inks for soft materials.
Mimaki’s UV-LED inks have been on the market for many years and have a proven track record of quality and reliability.
For even more confidence
our products are GREENGUARD GOLD certified
GREENGUARD GOLD certified products meet the rigorous standards for low emission of volatile organic compounds (VOCs) and ensures that a product is acceptable for use in environments such as schools and healthcare facilities without polluting the indoor air quality.
JFX200-1213 EX
Core Technologies
This printer includes Mimaki Core Technologies that offer the best print quality, maximum productivity and reduced exposure to risks that can delay production. See below list of core technologies that are included in the JFX200-1213 EX.
For continued productivity
- Nozzle Check Unit (NCU), to detect missing nozzles
- Nozzle Recovery System (NRS), to replace missing nozzles
- Automatic Cleaning Function, to keep the print head clean
- Mimaki Circulation Technology (MCT), preventing ink sedimentation
For quality printing
- Mimaki Advanced Pass System (MAPS4), to reduce banding
- Waveform Control (WFC), for best possible image sharpness
- Variable Dots Technology (VDT), for smoother gradations
- Mimaki Fine Diffusion (MFD), for smoother colours
- Mimaki Clear Control (MCC), for a glossy finish
| Item | JFX200-1213 EX | |
| Head | On-demand piezo head | |
| Curing system | High-intensity UV-LED | |
| Machine size | 3,142 x 2320 x 1235 mm | |
| Weight | 510kg | |
| Print size | 1,270×1,300 mm | |
| Media thickness | Standard 50mm or less (102mm or less *with lift-up option) | |
| Media weight | 50kg/m² | |
| Media adsorption | Blower adsorption type + foot switch | |
| Vacuum divisions | 2 divisions (X direction) | |
| Ink | LH-100/LUS-120/LUS-150/LUS-350/LUS-211/PR-200*１ | |
| Number of colours | M,K,C,Y,Lc,Lm,W,Cl,Pr*１ | |

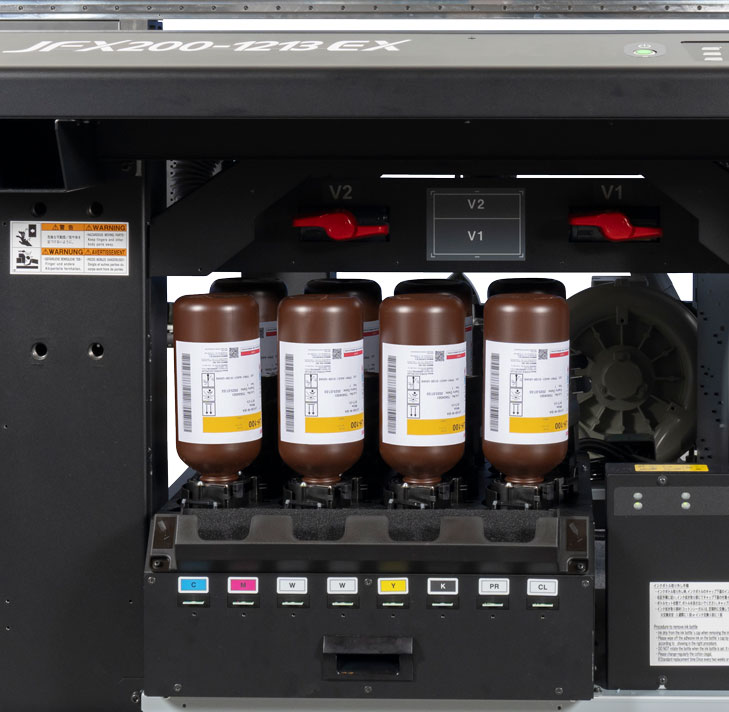

| Ink supply | 1L bottle, 250ml bottle (LH-100,LUS-120,PR-200) | |
| Ink Circulation System | MCT (Mimaki Circulation Technology) | |
| Interface | USB 2.0, Ethernet 1000BASE-T | |
| Power use | Single phase (AC200-240V±10%, 50/60Hz±1Hz) x 1 | |
| Power consumption | 2.88 kVA or less | |
| Compatible standards | VCCI Class A, CE Mark, CB Report, US safety standard UL (UL62368-1),RoHS Directive, FCC Class A, Machinery Directive, RCM | |
| Distance Accuracy | Absolute accuracy: ±0.3mm or ±0.3% of specified distance, whichever is greater Reproducibility: ±0.2mm or specified distance ±0.1%, whichever is greater. | |
Software RIP
The primary task of RIP (Raster Image Processor) software is to convert the different formats of the file to be printed into data that the printer “understands” as raster data.
RasterLink7
Included Mimaki’s RasterLink7 RIP software offers advanced print management, precise color control, and efficient workflows.
LH-100
UV-LED ink
Hard ink for rigid materials
Packaging
250ml or 1 litre bottle
Colour
4 colours + 4 special inks: C,M,Y,K + W, CL, or Pr for various applications.
6 colours + 2 special inks: C,M,Y,K + LcLm W, or CL for high image quality.
6 colours + 2 special inks: C,M,Y,K + LcLm W, or CL for high image quality.
Ink type
Mimaki’s LH-100 UV-LED ink offers vibrant, durable privnts with fast curing and strong adhesion, perfect for demanding rigid substrates.
LUS-120
UV-LED ink
Flexible ink for rigid materials and a variety of media
Packaging
250ml or 1 litre bottle
Colour
7 colours: C,M,Y,K,W,CL,Pr
Ink type
Mimaki’s LUS-120 is a flexible UV-LED ink offering vibrant prints with excellent durability and adhesion on diverse substrates.
LUS-150
UV-LED ink
Flexible ink for a variety of media
Packaging
1 litre bottle
Colour
7 colours: C,M,Y,K,W,CL,Pr
Ink type
Mimaki’s LUS-150 is a stretchable UV-LED ink offering vibrant prints with excellent scratch and outdoor durability.
LUS-211*
UV-LED ink
Flexible ink for a variety of media
Packaging
1 litre bottle
Colour
6 colours: C,M,Y,K,W,CL
Ink type
Highly stretchable ink with high scratch resistance.
LUS-350
UV-LED ink
Ink for thermoforming
Packaging
1 litre bottle
Colour
6 colours: C,M,Y,K,W,CL
Ink type
Mimaki’s LUS-350 is a flexible UV-LED ink for thermoforming, offering high durability and excellent adhesion on various substrates, perfect for detailed and complex shapes.
*LUS-211 ink available in certain areas.
