UCJV300 Series
Leading the Future of Sign Graphics through UV Innovation
The UCJV300 Series is a versatile inkjet printer family, having a combined function of both printing and cutting mounted with UV-curable ink.
The UCJV300 Series is a high-spec model equipped with a 5 layer print function in addition to UV-LED print and Print & Cut.
It is a versatile model widely supporting job by short delivery time to advertisement sign with leading design.
|
|
|
|
|
|
|
Create…
Outdoor Signage, Posters, Illumination signboard, Banners & flags, Swing P.O.P. (PET film), Labels, Wallpaper
Specifications of UCJV300 Series
| Item | UCJV300-75 | UCJV300-107 | UCJV300-160 | |
| Printhead | 2 drop-on-demand piezoelectric head (in-line configuration) | |||
| Print resolution | 300dpi, 600dpi, 900dpi, 1200dpi | |||
| Drop size | Min: 7pl, Max: 28pl | |||
| Head height | Manual adjustment (2.0/2.5/3.0mm from platen) | |||
| Ink type | LED-UV ink LUS170 | |||
| Ink colour | 4C (CMYK) / 7C (CMYKLcLmW) | |||
| Ink supply | 1L bottle supply | |||
| Max printing width | 800mm | 1,090mm | 1,610mm | |
| Max media width | 810mm | 1,100mm | 1,620mm | |
| Min media width | 210mm | |||
| Media thickness | 1.0mm or less | |||
| Outside diameter | 250mm or less | |||
| Roll weight | 40kg or less | |||
| Outside dimensions (W x D x H) | 2,090 x 776 x 1,475mm | 2,380 x 776 x 1,475mm | 2,900mm x 776mm x 1,475mm | |
| Bodyweight | 139kg | 156kg | 188kg | |
| Power supply | 2x Single phase (AC100~120/200~240V +/-10%, 50/60Hz +/-1Hz) | |||
| Power consumption | AC100V: 1.44kW / AC200V:1.92kW | |||
| Operational environment | Temperature: 20~30oC, Humidity: 35~65%Rh, Guaranteed temperature: 20~25oC, Temperature inclination: +/-10oC/h or less, Dust: 0.15mg/m3 (equivalent to office) | |||
All UCJV300 Series inks are GREENGUARD Gold certified.
Features of UCJV300 Series
One graphic, two views

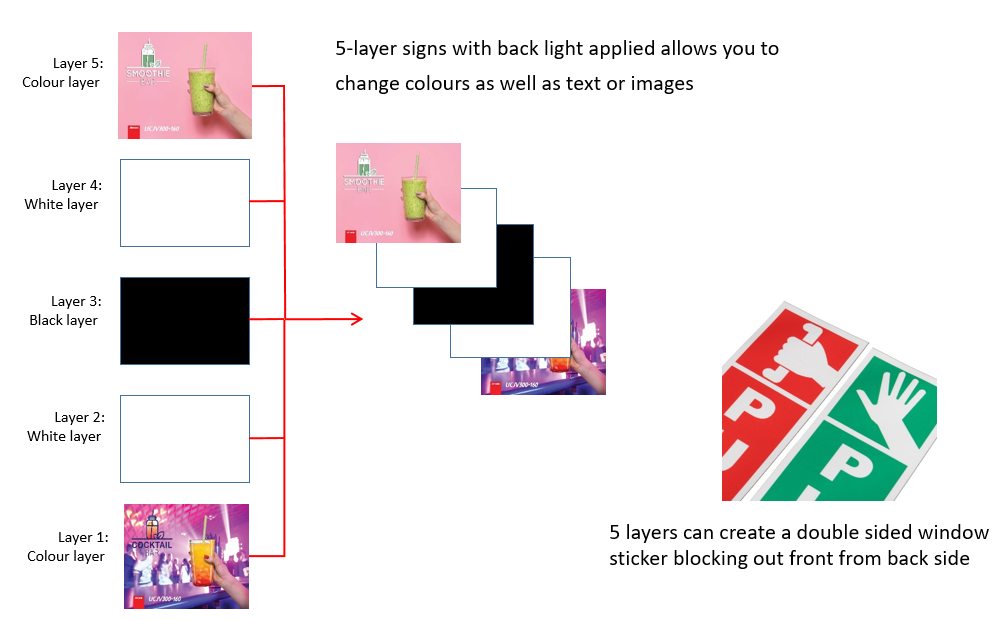

Five-layer printing – for example, colour + white + black + white + colour can be performed simultaneously. Available only on the UCJV300-160 model, it offers an enhanced print capability that allows designers to build layered, transformative graphics for backlit applications. This gives print service providers the opportunity to offer something unique – a dynamic graphic that ‘morphs’ its image or colour scheme depending on the light source. This distinctive capability enables designers and print service providers to produce high impact, premium margin output while maintaining low operational costs and reduced production time.
Integrated cutting capability
The integrated cut functionality enables volume production of labels, decals, window clings, floor graphics, POP displays, vehicle markings, packaging, prototypes and more in a single unit. Additionally, UV ink technology prevents common problems such as film separation and other issues related to post-cutting that can occur with solvent and latex inks.
Instant drying for instant use
UCJV300 Series prints are instantly cured at even the highest production speeds. This allows users to print rapidly and immediately move to the finished product, unlike other technologies that require slower production to accommodate for drying time or out-gassing. For many jobs, instant drying, high scratch resistant UV printing can also eliminate the need for additional finishing like laminating, enabling print service providers to reduce cycle time while benefiting from additional cost savings.
White ink adds value
Combining white and coloured inks on the UCJV300-160 model adds value to applications utilising transparent or semi-opaque films. Compared to alternative inks such as solvent and latex, UV-curable inks deliver greater opacity with less ink consumption per square meter of coverage while maintaining image vibrancy and density. High opacity white ink also facilitates block-out printing within a single print, enabling print service providers to easily and efficiently create window graphics that can be viewed differently from either side, as in a PUSH / PULL door sign. These features ensure higher throughput, reduced waste, and perfectly registered double-sided graphics with lower overhead costs per print.
ID Cut function in RasterLink6 plus software
The UCJV300 Series printers will ship with updated RasterLink6 plus software. This new, feature-rich version of the widely used Mimaki RasterLink RIP software includes an ID Cut function to make printing and cutting easier and faster. The barcode, read by the crop mark sensor on the UCJV printer/cutter, contains cutting and rotation information allowing the UCJV machine to automate the cutting process. This function is particularly useful when running nested print-cut jobs, as the cutter continuously reads the data for both single and combined jobs.
RasterLink6 plus software also includes the FineCut plug-in for Adobe Illustrator, allowing a print preview for 4-layer printing enabling operators to preview the transition day and night effect before printing. RasterLink6 plus now supports PDF 1.5 and above.
Mimaki Core Technologies
On-board Mimaki technologies are included for exceptional print quality and continuous productivity:
- Mimaki Advanced Pass System 4 (MAPS4) – utilises an advanced algorithm pattern to reduce visible banding.
- Variable Dot Printing (VDP) – uses smaller drops to produce smoother gradations, while larger drops produce uniform solids.
- Waveform Control (WFC) – uses finely tuned frequencies for each ink’s specific gravity and viscosity to precisely shape and place individual drops.
- Mimaki Circulation Technology (MCT) – continuously agitates the white inks to prevent settling.
- Nozzle Check Unit (NCU) – monitors nozzle outages and automatically activates a series of recovery functions.
- Nozzle Recovery System (NRS) – automatically assigns operational nozzles when an outage is detected.
- Half Cut (HC) – a proprietary function where the backing sheet can be cut, leaving behind a small connecting point that can be easily detached when necessary, ensuring contour cut pieces are easier to handle with less waste.
- Over Cut (OC) – makes a cross cut at the start and end positions so the finished piece has sharp edges with no undercut fragments.
- Continuous (C) – crop marks are automatically and continuously detected for accurate cutting.
- Segment (S) – detects intermediate crop marks in feed direction and enables four-point corrections for each segment for accurate, long-length cutting, even if the image is distorted.
All UCJV300 Series inks are GREENGUARD Gold certified.
